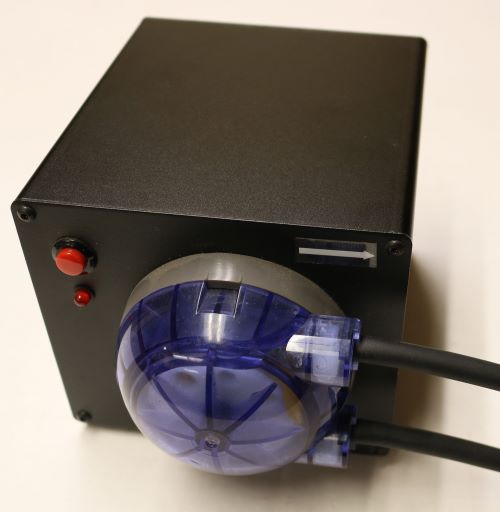

Programmable Peristaltic Pumps
9000 Series


Order Online for Peristaltic Pumps

√  Pump from a reservoir through replaceable continuous tubing.
√  Measured dispenses for production filling of bottles.
√  Fluid only comes into contact with the continuous tubing - not the pump.
√  Tubing can be replaced with any compatible tubing that meets the requirments of your fluid.
√  Continuous Pumping. Up to 1500 mL/min (model NE-9010).
√  Dispenses and Withdraws.
√  Calibration function to improve precision.
√  Slow Down and Anti-Drip modes improve control of dispensing.
√  Optionally operates from a foot switch or external sensor.
√  Fully programmable with Computer interface for more advanced applications.
√  One-click program upload from "Pumping Program Generator" spreadsheet.

Learn and Repeat™

Quickly teach the pump the volume of a bottle or container. Then immediately fill all your bottles or containers to the same volume.

Quick Change Pumping Heads

Reduce costs while increasing productivity by using one pump with multiple fluids. Quickly change between different fluids with extra pumping heads. Simply twist off one head and twist on a different head to change between fluids.

• Download Brochure
• Download User Manual

Description:
• The 9000 Series peristaltic pumps are equipped to be used in many settings from the small home based business to the large factory floor. Applications range from continuous flow to measured dispenses. The pump can be integrated into existing production lines or simply used stand alone.
• The 9000 Series is fully programmable and can be operated manually or with a PC through an RS-232 or USB communication port. PC cable and software offered as accessories.

Model Head
Color
Rollers Tubing
Size
ID
Included
Tubing
Type
Minimum
Rate
(mL/min)
Maximum
Rate
(mL/min)
NE-9000GGreen41/16""PharMed®0.00475.19
NE-9000BBlue23/16""Industrial0.035775.2
NE-9004CClear21/4""Industrial0.0471038.
NE-9010Yellow25/16""Industrial0.0811500.

Features:
• Dispense and withdrawal pumping
• Quick change pumping heads to quickly switch between fluids.
• Learn and Repeat™ mode to improve dispense productivity.
• Slow down mode to improve accuracy of dispenses
• Anti-Drip mode to stop oozing after dispenses
• Calibration mode to improve accuracy: Under 3% error.
• Power Failure Mode: Restarts the Pumping Program after a power interruption
• Programmable dispense volumes. Store and select from up to 40 Dispenses.
• Selectable volume units of mL or Oz.
• Selectable pumping rate units of mL/min, mL/sec, Oz/min, Oz/sec, or dispense a volume over a set time.
• Programming mode for complex pumping applications and interaction with external devices.
• Foot Switch control available.
• RS-232 bi-directional control for complete control from a PC. Network up to 100 pumps and other devices.
• Digital logic control: TTL I/O with software filtered control inputs to eliminate glitches and ringing on the control inputs. Configurable TTL operational trigger for foot switches and other devices.
• Audible alarm.
• Easy-to-use keypad interface
• Non-volatile memory of all operating parameters and pumping program
• Space Saving Chassis: Foot print size of only 7 3/4" x 5 1/4"
• Two year warranty
• Includes all the advanced functions and programming features of the NE-1000 pump series
• Worldwide power supplies available
• Other tubing, supplies and accessories sold separately.

Model #: NE-9000B
High flow rates & large dispense volumes. 2 roller pumping head with 3/16" ID tubing.
Flow rate ranges: 0.035 mL/min to 775.2 mL/min.
Includes PERI-HEAD-KIT-YB2.
Price: $570.00




Model #: NE-9000G
Better precision with lower flow rates & small dispense volumes. 4 roller pumping head with 1/16" ID tubing
Flow rate ranges: 0.004 mL/min to 75.19 mL/min.
Includes PERI-HEAD-KIT-YG4.
Price: $645.00

Model #: NE-9004C
Higher flow rates & larger dispense volumes. 2 roller pumping head with 1/4" ID tubing
Flow rate ranges: 0.047 mL/min to 1038 mL/min.
Includes PERI-HEAD-KIT-HGC2.
Price: $670.00

Model #: NE-9010
Highest flow rates & larger dispense volumes. 2 roller pumping head with 5/16" ID tubing
Flow rate ranges: 0.081 mL/min to 1500 mL/min.
Includes PERI-HEAD-KIT-JY2.
Download NE-9010 Addendum
Price: $955.00


Purchase additional heads to quickly change between fluids, improving productivity. 3/16" ID and 1/16" ID tubing heads are interchangeable.

PERI-HEAD-KIT-YB2
NE-9000B Replacement Head Kit
Also compatible with NE-9000G
2 roller pumping head, 3/16"ID tubing. Maximum pumping rate: 775.2 mL/min
Kit includes:
• Blue, 2 roller head
• 4 ft. Tubing:
Model Q-TP-IND1-3/16
Industrial Grade 3/16"ID x 5/16"OD x 1/16" Wall
• Clamp ties: Nylon, quantity 4
• Vial of lubricant
Price: $67.29

PERI-HEAD-KIT-YG4
NE-9000G Replacement Head Kit
Also compatible with NE-9000B
4 roller pumping head, 1/16"ID tubing. Maximum pumping rate: 75.19 mL/min
Kit includes:
• Green, 4 roller head
• 4 ft. Tubing
Model Q-TP-PMED-1/16
PharMed® 1/16"ID x 3/16"OD x 1/16" Wall
• Clamp ties: Nylon, quantity 4
• Reduction coupler, quantity 4
• Vial of lubricant
Price: $129.15

PERI-HEAD-KIT-HGC2
NE-9004 Replacement Head Kit
2 roller pumping head, 1/4"ID tubing. Maximum pumping rate: 1038 mL/min
Kit includes:
• Clear, 2 roller head
• 4 ft. Tubing
Model Q-TP-IND1-1/4
Industrial Grade 1/4"ID x 3/8"OD x 1/16" Wall
• Clamp ties: Nylon, quantity 4
• Vial of lubricant
Price: $127.58
PERI-HEAD-KIT-JY2
NE-9010 Replacement Head Kit
2 roller pumping head, 5/16"ID tubing. Maximum pumping rate: 1500 mL/min
Kit includes:
• Yellow, 2 roller head
• 7" Tubing Assembly
Model Q-TP-ASBLY-IND-5/16
Industrial Grade 5/16"ID x 1/2"OD x 3/32" Wall
• Coupler: Industrial, quantity 2
• Vial of lubricant
Price: $195.00



International Orders
New Era Pump Systems, Inc. product line is supported around the globe by our distribution network. You can order our products from our international distributors. Our syringe pumps are CE certified and we have international power supplies available. Click here for more important details.

Click Here for International Orders

Not For Human Clinical Use
