NE-9500 Programmable OEM
Peristaltic Pump

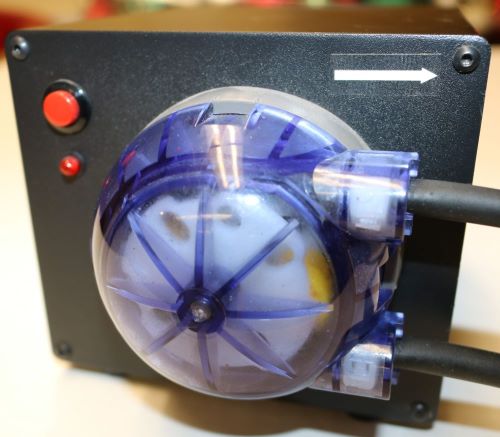

NE-9500 OEM Peristaltic Pump

Model: NE-9500B

Price: $425 USD

NE-9500 does not come with a power supply.
Please see OEM Starter Kit and OEM Net below.
  • Computer controllable: networkable up to 100 pumps
  • Stand-alone operation: pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller
  • One-click program upload from "Pumping Program Generator" spreadsheet
  • Add the OEM Starter Kit to run as a fully functional, stand-alone pump

Description:

Rear connections of the NE-9500 Peristaltic Pump


Features of the NE-9000 Series of Peristaltic Pumps:
  • Infusion and withdrawal
  • Fully programmable and automation capable
  • Set a single pumping rate and/or dispensing volume
  • Program up to 40 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, extra I/O expansion port, sound the buzzer
  • Operates stand-alone or from a computer. Cables sold separately.
  • RS-232 Serial Computer interface. USB converter cable available.
  • Network, control, and monitor up to 100 pumps with one computer
  • TTL logic interface for digital control
  • Dispensing accuracy of ±3% with calibration function
  • Unlimited lifetime technical support
  • Two year warranty

NE-9500 Configurations:
  • Need higher flow rates? Contact us. We have other models available.
Model Tubing Size
ID		 Minimum
Rate		 Maximum
Rate		 Price
NE-9500G1/16"0.004 mL/min75.19 mL/min$500
NE-9500B3/16"0.035 mL/min775.2 mL/min$425

NE-9500 Core Module:

  • Front panel with Peri-Base only, without pumping head
  • Motor assembly
  • Control PCB, with RS-232 serial interface and logic interface
  • Does not include panel button, LED, outer shell, or rear plate

Model: NE-9500-CORE

Price: $275


Back to Top

OEM Starter Kit
OEM Starter Kit

Model: OEM-USB-START-24

Price: $42.50 US, $42.50 UK
$42.50 European, $42.50 Australian

Description:

USB to RS-232 Converter Cable

Model: CBL-USB232

Price: $12.50

Description:

  • Adds an RS-232 port to a computer by attaching to a USB port.
  • Cable CBL-PC-PUMP-7 attaches between this cable and the pump.

OEM Net

 Back To Top
OEM Net

Model: OEM-NET-24

Price: $15 US, $15 UK
$15 European, $20 Australian

Description:

24VDC Power supply and secondary cable only. For use when networking two or more OEM pumps to a single computer serial port. Must use one OEM-NET for each additional OEM pump after the first pump.

Foot Switch

 Back To Top
Foot Switch

Model: ADPT-FOOTSW-2

Price: $35 USD

Description:

  • Remote and/or hands free pump operation
  • Start, stop, or send a signal to a pumping program
  • 15 different configurations. Change configuration within a pumping program
  • Attach to any pump (except NE-300) for stand-alone operation
  • 20 foot cable
  • Attaches to the TTL logic port on pump
  • Quick and simple setup

Firmware and Program Memory Upgrade Options:


Model: FW-5-X2

Price: Add $130 USD to any OEM models

Extra Features:
X2 upgrade includes all features of the X model plus increases the number of programmable phases from 40 to 339.
Back to Top


International Orders
New Era Pump Systems, Inc. product line is supported around the globe by our distribution network. You can order our products from our international distributors. Our stand-aleon pumps are CE certified and we have international power supplies available. Click here for more important details.
Click Here for International Orders

Not For Human Clinical Use
