Multi Channel Programmable Syringe Pumps
|
|
|
|
Order Online for the Multi-Channel Syringe Pump
|
NE-1600 Six Channel Programmable Syringe Pump |
 |
Model: NE-1600 |
Price: $1570 USD |
Description:
|
- Fully programmable; automation capable
- Operates stand-alone or from a computer. Cables sold separately.
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- One-click program upload from "Pumping Program Generator" spreadsheet
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
|
Example Flow Rates (NE-1600): |
| Syringe Size |
Maximum Rate |
Minimum Rate |
| 0.5 µL |
17.45 µL/hr |
0.001 µL/hr |
| 1 mL |
36.19 mL/hr |
0.452 µL/hr |
| 3 mL |
153.2 mL/hr |
1.914 µL/hr |
| 5 mL |
255 mL/hr |
3.185 µL/hr |
| 10 mL |
415.9 mL/hr |
5.195 µL/hr |
| 20 mL |
661.4 mL/hr |
8.26 µL/hr |
| 30 mL |
862.8 mL/hr |
10.78 µL/hr |
| 60 mL |
1451 mL/hr |
18.1 µL/hr |
| 140 mL |
2376 mL/hr |
29.7 µL/hr |
|
|
|
|
 |
Model: NE-1800 |
Price: $1570 USD |
Description:
|
Example Flow Rates (NE-1800): |
| Syringe Size |
Maximum Rate |
Minimum Rate |
| 0.5 µL |
17.45 µL/hr |
0.001 µL/hr |
| 1 mL |
36.19 mL/hr |
0.452 µL/hr |
| 3 mL |
153.2 mL/hr |
1.914 µL/hr |
| 5 mL |
255 mL/hr |
3.185 µL/hr |
| 10 mL |
415.9 mL/hr |
5.195 µL/hr |
|
|
|
 |
Model: NE-1200 |
Price: $1570 USD |
Description:
|
Example Flow Rates (NE-1200): |
| Syringe Size |
Maximum Rate |
Minimum Rate |
| 0.5 µL |
17.45 µL/hr |
0.001 µL/hr |
| 2 µL |
69.82 µL/hr |
0.001 µL/hr |
| 5 µL |
174.8 µL/hr |
0.003 µL/hr |
| 1 mL |
36.19 mL/hr |
0.452 µL/hr |
| 3 mL |
153.2 mL/hr |
1.914 µL/hr |
|
|
|
|
|
 |

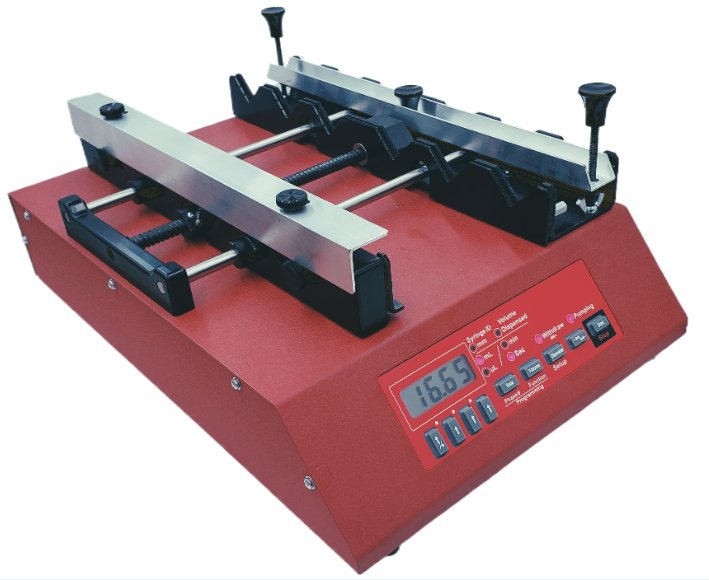

Model: NE-1665 Six Channel |
Price: $2600 USD |
Model: NE-1865 Eight Channel |
Price: $2600 USD |
Model: NE-1265 Twelve Channel |
Price: $2600 USD |
Description:
- Model: 1665: Holds 2, 4 or 6 Syringes of up to 140 mL each
- Infusion rates up to 1284 mL/min with a 60 mL syringe
- Model: 1685: Holds 2, 4, 6 or 8 Syringes of up to 10 mL each
- Infusion rates up to 368.1 mL/min with a 10 mL syringe
- Model: 1265: Holds 2, 4, 6, 8, 10 or 12 Syringes of up to 3 mL each
- Infusion rates up to 135.5 mL/min with a 3 mL syringe
- Solid Drive Nut Block. Use purge function to move pusher bar
- Additional brackets and screw downs to secure syringes
- All syringes operate in sync. Independent syringe operation, including "Push-Pull", available with the Dual Pump System.
- Easy-to-use keypad interface
- One-click program upload from "Pumping Program Generator" spreadsheet
- Includes all the Features of the NE-1000 Series of Syringe Pumps
- Includes all the advanced functions and programming features of the NE-1000 series
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
|
Example Flow Rates: |
| Syringe Size |
Maximum Rate |
Minimum Rate |
| 3 mL |
135.5 mL/min |
0.013 µL/sec |
| 10 mL |
368.1 mL/min |
0.035 µL/sec |
| 20 mL |
585.3 mL/min |
0.055 µL/sec |
| 60 mL |
1284 mL/min |
0.119 µL/sec |
| 140 mL |
2102 mL/min |
0.195 µL/sec |
|
|
|
|
Firmware and Program Memory Upgrade Options: |
- Firmware Upgrades available to enable Linear Pumping, add additional programming functions, and to increase Pumping Program Memory
|
| Model: FW-1-X |
Price: Add $130 USD to any NE-1000 series |
Extra Features:
X upgrade adds Linear/Gradient flow rate ramping, and additional advanced programming functions. Download User Manual
|
| Model: FW-1-X2 |
Price: Add $230 USD to any NE-1000 series |
Extra Features:
X2 upgrade includes all features of the X model plus increases the number of programmable phases from 41 to 340. |
|
|
